Brewmaster Motor - AB
Image may not reflect selected features

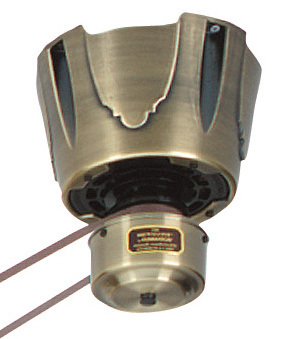

Brewmaster Motor - AB (65TC)
The Brewmaster by Fanimation is a brilliant reproduction of a classic belt-driven fan that was first introduced to the ceiling fan scene in the late 1800's. As its name suggests, the style of The Brewmaster evokes images of an Old Western tavern OBere patrons came to enjoy the brew of the bar and the breezes of the belt-driven fan. Although the Brewmaster has an antique exterior, its high tech interior is capable of operating up to two fans. Like most Fanimation fans, The Brewmaster can be tailored to fit any individual style with the hardwood laminate blade options ranging from traditional wood to natural palm leaf. Choose the perfect blade finish of reversible Oak/Walnut, Cherry or Rosewood. *Antique Brass finish is Dry Rated for indoor use; Black finish option is Damp Rated for indoor or outdoor use *Reversible airflow for multi-season use
Downloads
Click Here to View Spec Sheet Details
Click Here to View Owners Manual
Product Specification
Item #
65TC
Dimensions
Height: 10.00"
Width: 8.00"
Length: 8.00"
Additional product details
Internal #
65TC
Category
Fans
Subcategory
Fan Motor Without Blades
Finish
Brass , Antique Brass
Style
Traditional
Option
Dry Rated
Subfinish
Antique Brass
Category
Fan-Multi
Finish
Antique Brass
Option
Dry Rated
Family
Brewmaster
Voltage
120 V
Additional Info
3 speed AC motor with reverse switch , Limited Lifetime Warranty , Powered by a gearless direct drive motor that can allow operation of up to 4 fans , Set of 2 blades and optional light kit available (sold separately) , TR20WH Handheld control and 3V CR2032 batteries included
Amperage
0.6
Diameter
8
Electricity Used
70
Harmonized Codes
8414.51.3000
Length
8
Light Kit Included
No
Motor Fan Speed
3
Motor RPM
76
Motor Size
FK2100
Motor Type
AC
Remote Control Included
TR20WH
Ship Carton Height
13
Ship Carton Length
13
Ship Carton Width
11
Ship Weight
14
Sold By
Each
Warranty
Limited Lifetime
Weight
16.1
Cap Included
No
Carton Cubic Feet
1.08
Cartons Per Unit
1
Case Height
13
Case Length
13
Case Quantity
1
Case Weight Pounds
14
Case Width
11
CEC Uploaded
No
Ceiling To Bottom
10
Compatible Light Kits
F301AB, F401AB, F404AB, F423AB, LK112A, LK114AAB, LK122A, LK124AAB, LK124WAB, LK250, LK500AB, LKFL250, LKFL260, LKLP101AB, LKLP102AB, LKLP111AAB, LKLP112AAB
Compatible Wall Controls
C21
Country of Origin
Taiwan
Current Draw High
0.6
Current Draw Low
0.32
Current Draw Medium
0.37
DOE Classification
Belt Driven
DOE-FTC Uploaded
No
DOEFTC Uploaded
No
Dry Rated
Yes
Exempt from DOE Procedure
Yes
Fan Energy Star
No
Housing Diameter
8
Included Control
TR20WH
Included Control Type
Handheld
Leadwire
54
Max Watt
70
Motor Finish Method Type
Plated
Motor Reversible
Yes
Number Of Speeds
3
Regulated Product
Yes
Reverse Switch Location
Control
RPM High (VI)
76
RPM Low (II)
28
RPM Medium (IV)
38
Safety Rating
UL Approved, cUL Approved
Voltage Cycles
60 hz
Watts Low
21
Watts Medium
28


Other Details:
  • 3 Speed Ac Motor With Reverse Switch
  • Limited Lifetime Warranty
  • Powered By A Geaerless Direct Drive Motor That Can Allow Operation Of Up To 4 Fans
  • Set Of 2 Blades And Optional Light Kit Available (sold Separately)
  • Tr20wh Handheld Control And 3v Cr2032 Batteries Included
